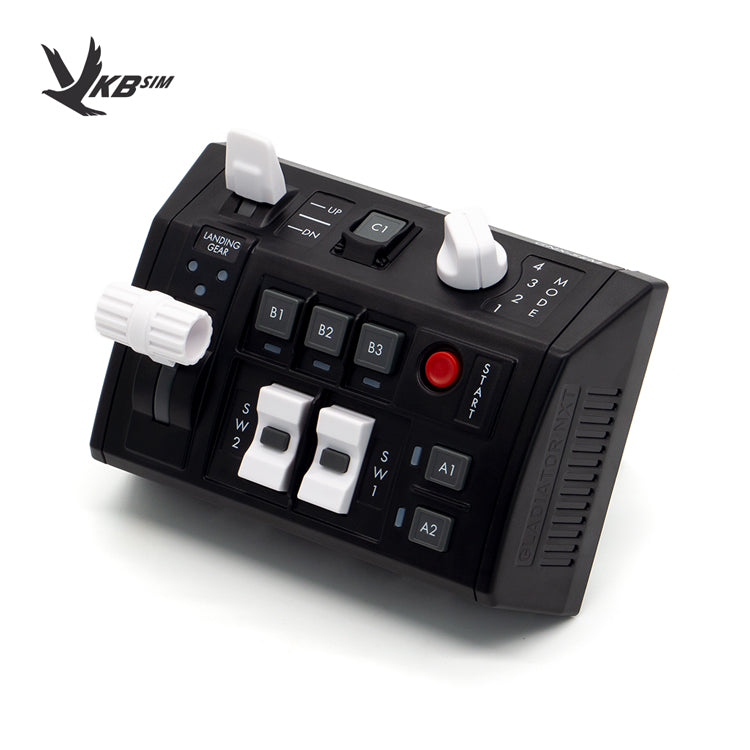

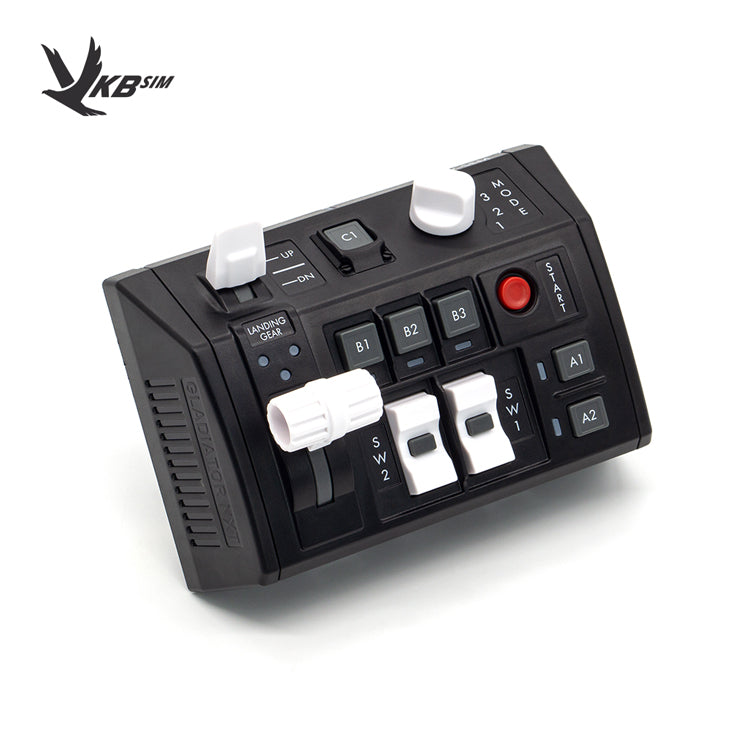

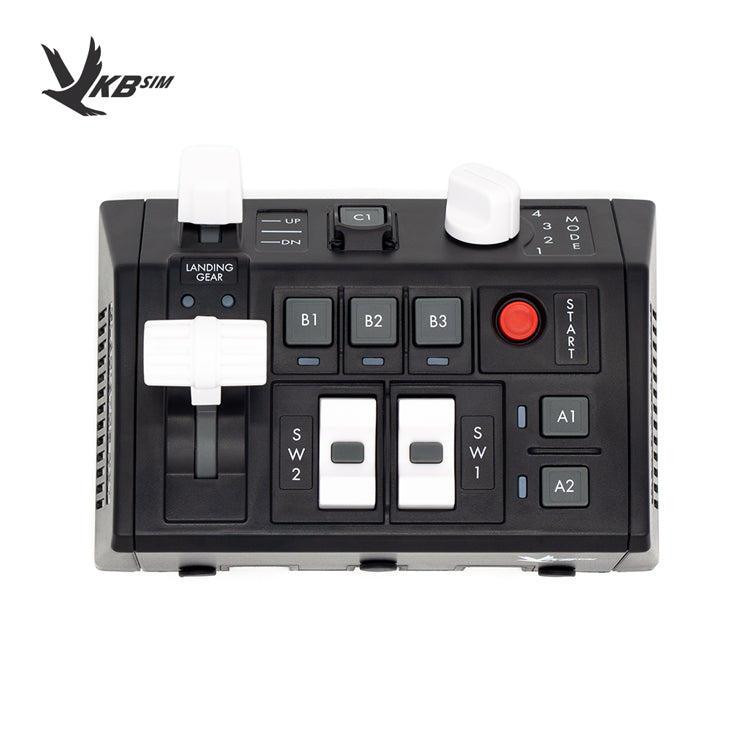

GNX SEM-V (Side Extension Module - Vertical)

Made for

GNX SEM-V (Side Extension Module - Vertical)

A USB connection is not included by default because GNX modules are specifically designed to be connected to Gladiator NXT/EVO joysticks, allowing them to function together as a single integrated device through their internal BUS interface.

If you want to use a GNX module on its own, directly connected to your PC, you'll need to separately purchase and install a GNX USB Controller (HID-Main) to replace the module's default GNX BUS Interface.

Includes

• 1x SEM-V Module
• 1x Plastic Coupler
• 1x Type-C Connector Guard
• 1x Set of Rubber Pads
• 1x Set of Plastic Spacers
• 1x Set of Interchangeable Heads
• 1x Set of Interchangeable Detents
• 1x Internal “Module-to-Module” Cable
• 1x Internal “Module-to-Joystick” Cable
• 1x Phillips Screwdriver
• 1x HEX Screwdriver
• 1x Set of Stickers with Protective Film
• 1x BUS (Type-C) to (Type-C) Interface Cable

Vertical module

• A vertical GNX module can be connected next to another THQ or SEM vertical module on the same GNX Multi-Functional Holder (MFH).
• Keep in mind that you cannot connect vertical GNX modules directly to a Gladiator NXT/EVO joystick. Instead, connect them to a GNX tabletop module (THQ or SEM) that is attached to a Gladiator NXT/EVO joystick.

Recommendations

• Consider a GNX MFH to attach the module.
• If you want to use a GNX module on its own, directly connected to your PC, you'll need to separately purchase and install a GNX USB Controller (HID-Main) to replace the module's default GNX BUS Interface.

Features

The device can be configured to provide either a total of 24 logical buttons or 17 logical buttons and 2 analog axes, depending on your preference and setup.

• 1x Rotary Switch
• 2x Multi-Function Axes
• 2x K-Switches with a Central Push Button
• 7x Push Buttons
• 8x Programmable, Dual-Color LEDs

Profile Templates

• Find them in our Downloads Section

Video Guides

• Building a SEM + SEM-V Gladiator NXT/EVO Combo
• All SEM-V related video guides

Compatible with

• Gladiator NXT/EVO
• Gladiator NXT/EVO Omni Throttle
• UCM Stronghold
• GNX USB Controller (HID-Main)
• STECS (if equipped with STECS MFH Fixture)

Warranty

• 2 Years
